Product Features
- UL 1480 Type F
- ULC S541/CSA 22.2 No. 205
- 129dB SPL
- 1/4 mile radius communication range
- Wide frequency range: 350Hz - 5kHz, optimized for human voice
- 50-200 watts
- 70v drive
- Intelligible voice announcements and sharp warning tones

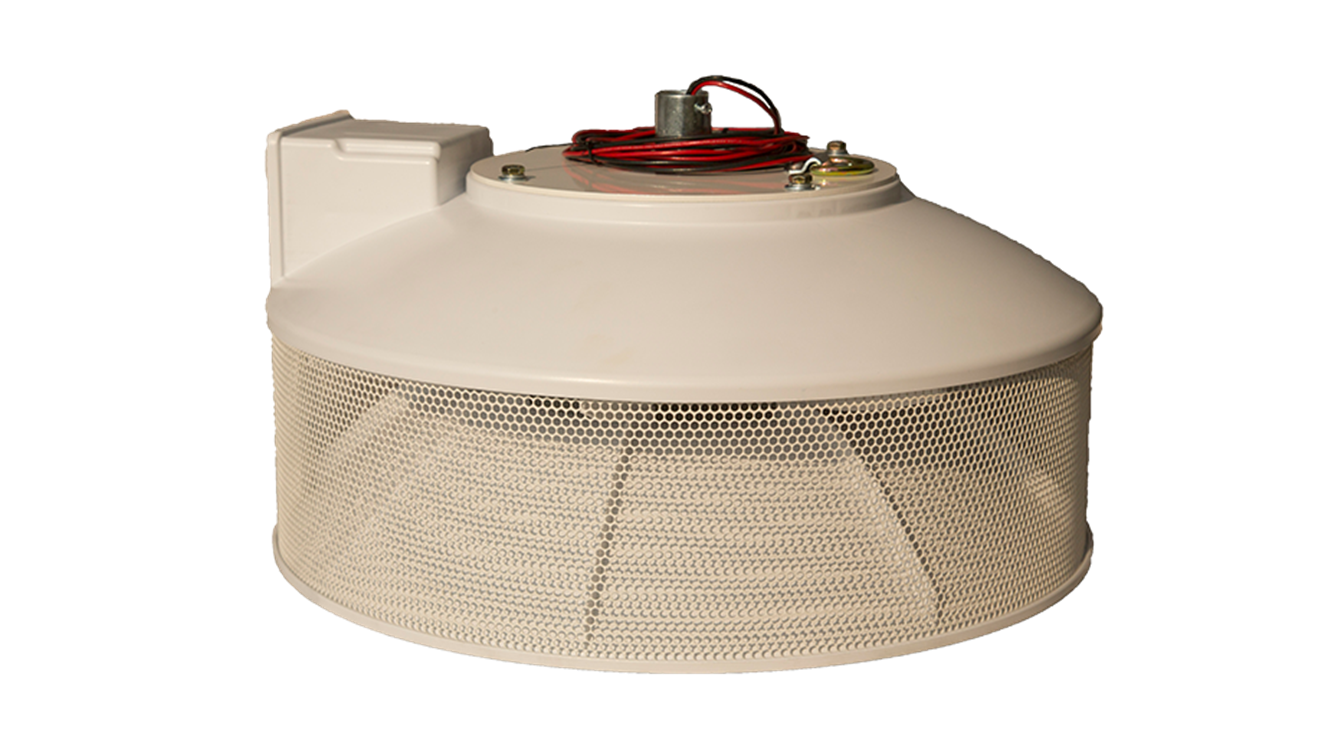

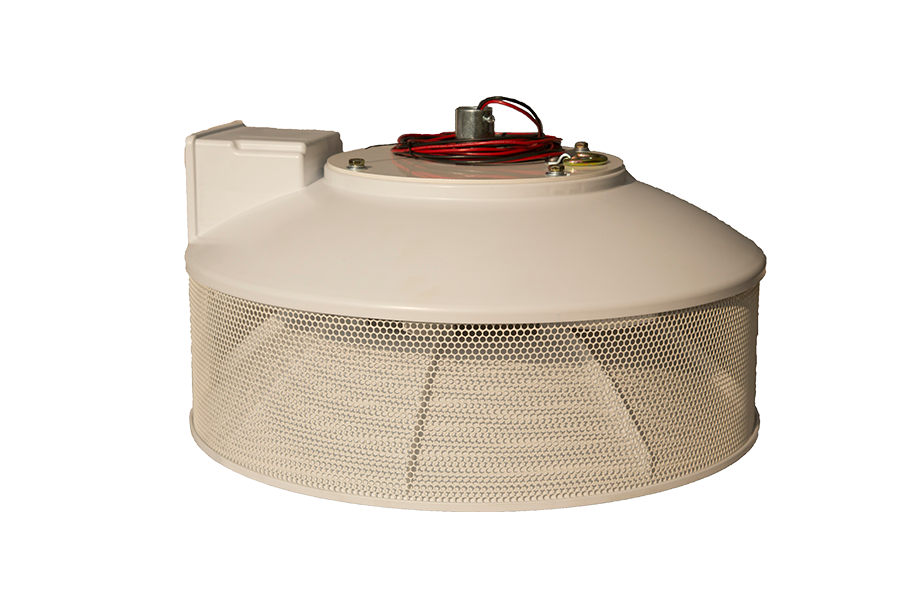

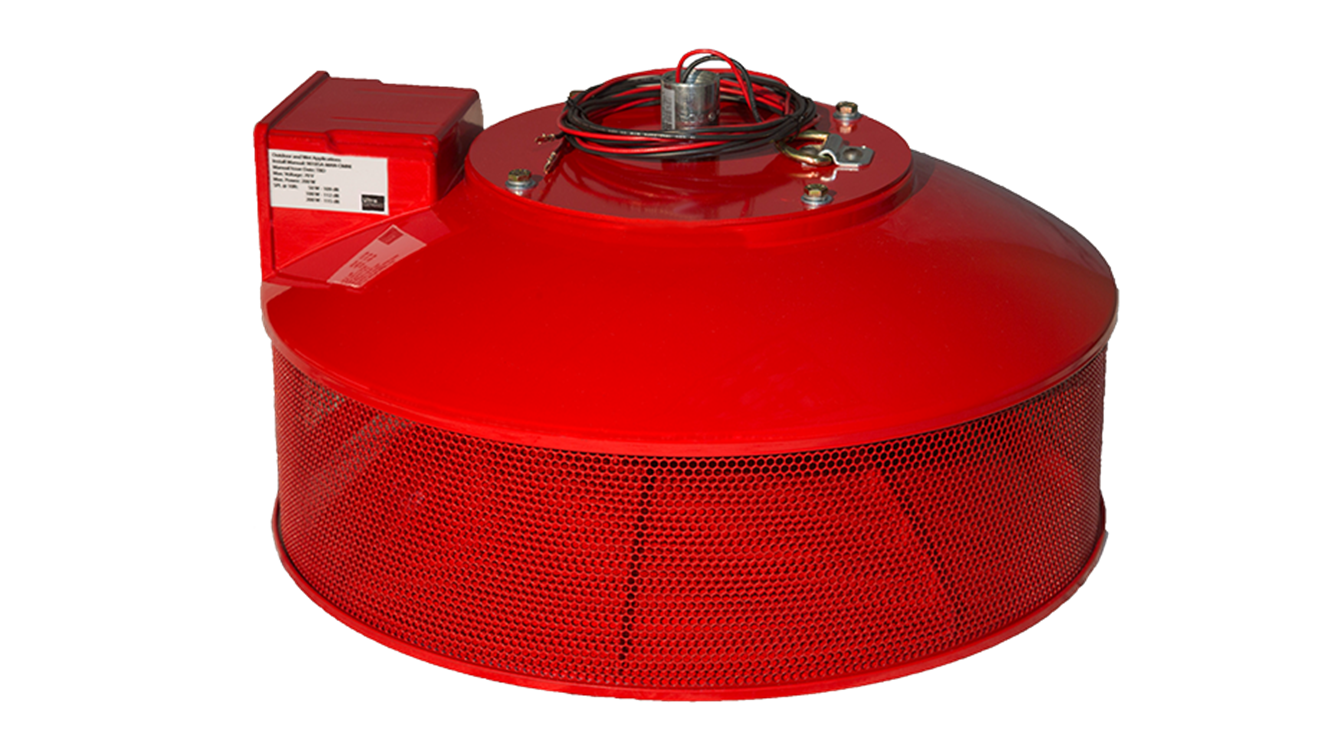

The TCPA-Omni is the perfect solution for both indoor and outdoor mass notification needs. Crystal-clear voice and high impact tones, make the TCPA Omni the perfect speaker to service all of your acoustic needs.
With an STI of 0.85 out of 1.0, the Omni is the class leader in clarity. At a scant 22 pounds, and a diameter of 19 inches; with an acoustic output of 129 dB, the TCPA-Omni will be heard more than it is seen.
The acoustic punch of the TCPA Omni allows for fewer units to be installed in large industrial complexes, increasing intelligibility while reducing installation and maintenance costs.
Applications
- Campus wide area notification
- Manufacturing facilities
- Warehouses
- Corporate campuses
- Airports/airport hangars
- Arenas/stadiums
Important Ease Modeling Information
The TCPA Omni gll file is a measurement of a direct drive unit. A 200W UL setting is equivalent and should be driven at 0 dB in EASE. To get the equivalent output of a 100W tap setting, the unit should be driven at -3 dB in EASE. To get the equivalent output ofa 50W tap setting, the unit should be driven at -6 dB in EASE.
